Disc Brake Pad

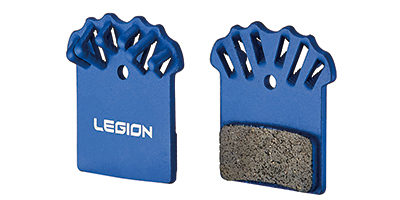

VORTEX COOLING TECHNOLOGIES

DPS-SH-05-S-SI
DPS-SH-06-S-SI
DPS-SH-07-S-SI

Heat Removal 1: Conduction Oversized backing plate to give more mass and lager surface area to conduct heat away from the friction material

Heat Removal 2: Convection Protruding Pyramid fins section allow greater surface area in contact with wind increasing the heat transfer from the backing plate to the atmosphere

Heat Removal-3: Vortex Cooling “V” Fins speed up cooling, generating local vortexes in air –flow allowing constant replacement of heated contact air with passing cool air

Benefits:

Improved Performance: Meaning you can brake harder and longer
Reduced “Brake Fade”: Pads cool so quick compound doesn’t reach temperatures associated with fade
Reduced “Pump-Up”: Heat transferred away from the brake piston limits potential for brake fluid to expand or vaporize; improving safety
Improved Pad Life: Keeping the compound cool significantly improves pad life by as much as 3X
Reduce Noise: Due to lower pad/disc temperatures

ITEM No.	Type	Model
DPS-SH-05-S-SI	SHIMANO	SAINT(4 pot)
DPS-SH-06-S-SI		Post Mount(2 pot)
DPS-SH-07-S-SI		Flat Mount(2 pot)

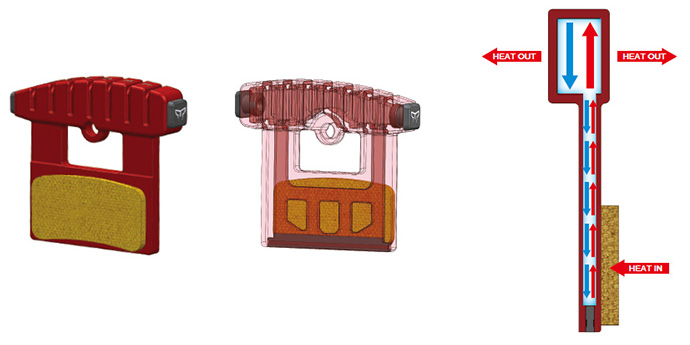

PRIMUS : Heat Pipe Technology Pat. Pending

Disc Brake Pads-Cryo-Tech: PRIMUS BRAKE PADS: Pat. Pending

A Heat Pipe is a device that combines the principles of thermal conduction and phase transition. At the hot interface (brake pad friction material) liquid is heated by the thermally conductive aluminum pipe (backing) until it becomes a vapor. The vapor then travels along the pipe to the cooler interface (reservoir/radiator), located at the top of the backing, where it evaporates and becomes a liquid and by so doing releasing the latent heat. The liquid then returns, aided by gravity to the hot interface where the cycle is repeated.

Note the vapor pressure at the high temperature end is much higher than the liquid low pressure end resulting in rapid mass transfer. The molecular speed in a gas approaches the speed of sound which makes the heat transfer rates of heat pipes much higher than simply relying on thermal conduction alone.

Benefits:

Rapid cooling of brake pads, meaning you can brake harder and longer
Reduced “Brake Fade”, as the pads cool so quick compound doesn’t reach temperatures associated with fade
Reduced “Pump-Up”, transferring the heat away from the brake piston limits potential for brake fluid to expand or vaporize; improving safety
Improved Pad Life, keeping the compound cool significantly improves pad life as much as 3X

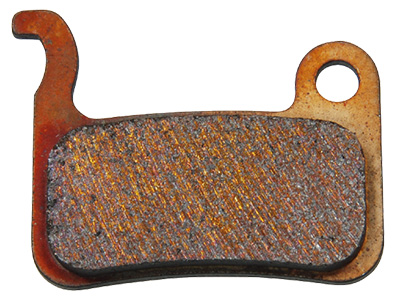

1ST CENTURION : Metal

Disc Brake Pads-OPTIO DISC BRAKE PADS Metal : >60 % Metal

With very high metallic loading this compound has been formulated specifically for very frequent hard use in all environments, ideal for competitive cross country & down hill

Exceptional high temperature performance
Exceptional wet performance
Exceptional pad wear

1ST LEGIONARY : Semi-Metal

Formulated specifically for frequent users giving improved off-road performance, ideal for cross country

Good all round braking performance
Improved wet performance (over organic)
Average to high temperature use
Improved pad wear (over organic)

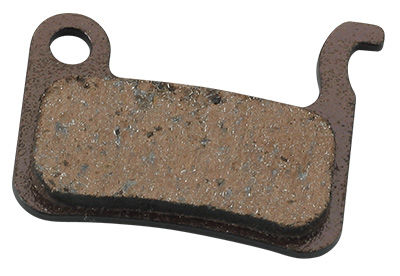

MILES : Organic

Disc Brake Pads-1ST LEGIONARY DISC PADS: Organic

This compound is targeted specifically at the general town/city road user. Excellent short term braking

Very good noise characteristics
Very low disc wear

Part Number: Disc Brake Pads

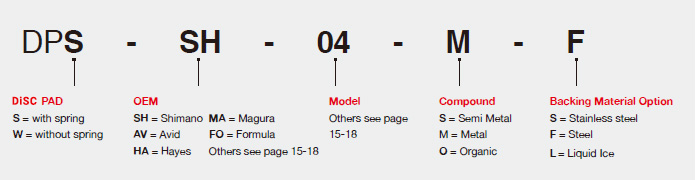

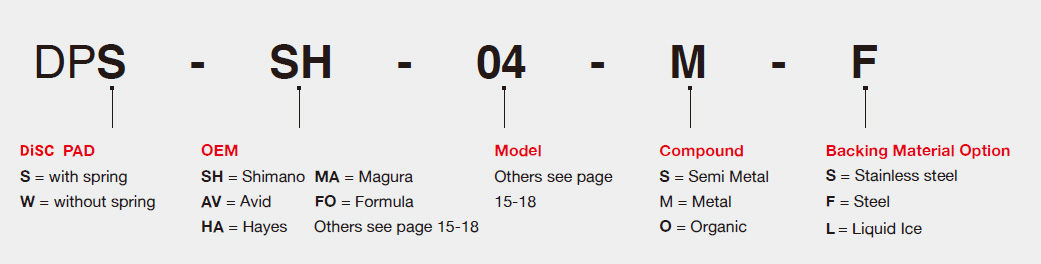

Disc Pad Model Selection

X - Compounds : M = Metal, S = Semi-Metal, O = Organic

B - Backing Material : S = Stainless Steel, F = Steel, L = Liquid Ice, SI = Ice Vortex

SHIMANO
MAGURA
AVID
FORMULA
TEKTRO
HAYES
HOPE
CAMPAGNOLO
OTHERS

SHIMANO

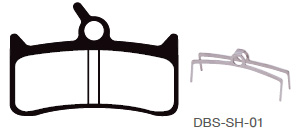

DPS-SH-01-X-B

DEORE XT BR-M755/ GRIMECA SYSTEM 8/SRAM/HOPE MONO M4

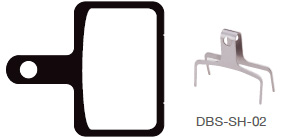

DPS-SH-02-X-B

DEORE BR-M515/525/575/415/465/ 475/485/495 NEXAVE BR-C501/601/607 TEKTRO Orion, Auriga Pro/E-Comp/ Auriga SUB/E-SUB+2013 Draco 2/WS, Aquila

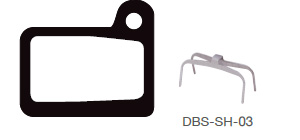

DPS-SH-03-X-B

SHIMANO DEORE BR-M555 NEXAVE C910 HYDRAULIC

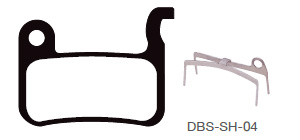

DPS-SH-04-X-B

XTR M965,M966,M975,M975P Saint M800, DEORE XT M776,M775 DEORE LX M585

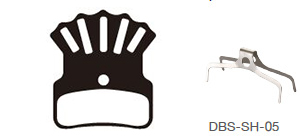

DPS-SH-05-X-B

Saint BR-M810
DPS-SH-05-S-SI

SAINT (4 pot)

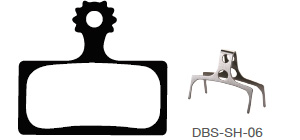

DPS-SH-06-X-B

XTR BR-M985

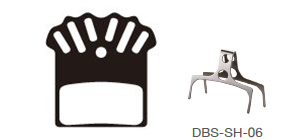

DPS-SH-06-S-SI

Post Mount (2 pot)

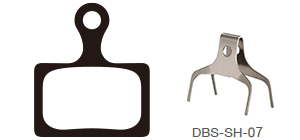

DPS-SH-07-X-B

SHIMANO ULTEGRA BR-RS505/RS805

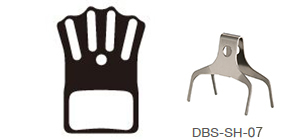

DPS-SH-07-S-SI

Flat Mount (2 pot)

MAGURA

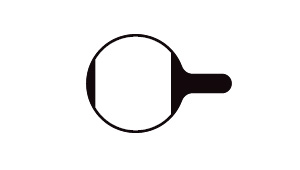

DPW-MA-01-X-B

LOUISE 1999-2001/CLARA 2000; IMPERIAL MECHANICAL CALIPER

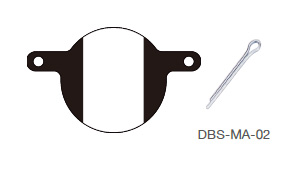

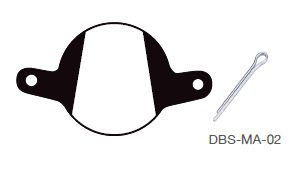

DPS-MA-02-X-B

JULIE 2001-2008
DPS-MA-03-X-B

LOUISE FR/LOUISE 2002-2006/CLARA 2001-2002

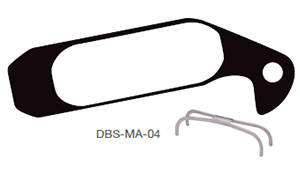

DPS-MA-04-X-B

GUSTAV M
DPW-MA-01-X-B

MARTA SL 2002-2008
DPW-MA-06-X-B

MARTA 2009~/LOUISE 2007~/JULIE HP
DPW-MA-07-X-B

MT2-MT8
DPW-MA-08-X-B

MT5
DPW-MA-09-X-B

MT7

AVID

DPS-AV-01-X-B

JUICY HYD. & BB7 MECH.
DPS-AV-02-X-B

BB5 MECHANICAL
DPS-AV-03-X-B

CODE
DPS-AV-04-X-B

ELIXIR R, CR Elixir 3,5,SRAM XX
DPS-AV-05-X-B

CODE R
DPS-AV-06-X-B

XO Trail 4 Piston Brakes SRAM Guide
DPS-AV-07-X-B

SRAM RED Hydraulic
DPS-AV-08-X-B

DB1-DB3/DB5/LEVEL T.TL

FORMULA

DPW-FO-01-X-B

EVOLUZIONE 9.5 & OPEN SYSTEM
DPS-FO-02-X-B

B4 HYD. 2PISTON 4 PISTON 2002 TYPE; 4 RACING (4 PISTONS)
DPS-FO-03-X-B

ORO
DPS-FO-04-X-B

THE ONE/R1 ; MEGA/RX
DPS-FO-05-X-B

FORMULA Cura

TEKTRO

DPW-TK-01-X-B

AQUILA/IO MECHANICAL
DPS-TK-02-X-B

Lyra & Iox. NOVELA 2011
DPS-TK-03-X-B

Volans Auriga Twin/Auriga SUB/E-SUB < 2013 SR SUNTOUR DB MECHANICAL
DPS-TK-04-X-B

DORADO E-BIKE
